Specification
| Item | Unit | Parameter |
| Product name | / | LO2 tank |
| Product model | / | Vertical or horizontal type |
| Filling medium | LO2 | |
| Fact volume | M3 | 3~35 m3 |
| Working pressure | Mpa | 0.8/1.6 Mpa |
| work temperature | °C | ≤50 |
| Water-pressed test pressure | Mpa | 2.22 |
| Tightness test press | Mpa | 1.77 |
| Vessel material | Q345R,Q370R 16MnIII | |
| Industry Protocol | GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures | |

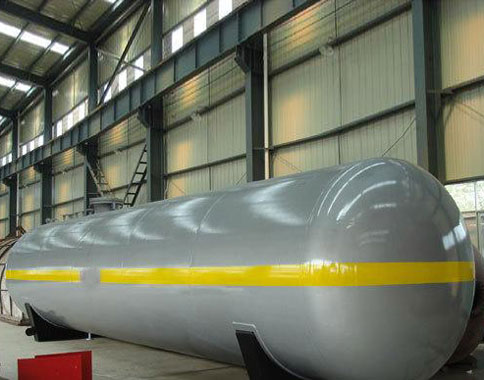

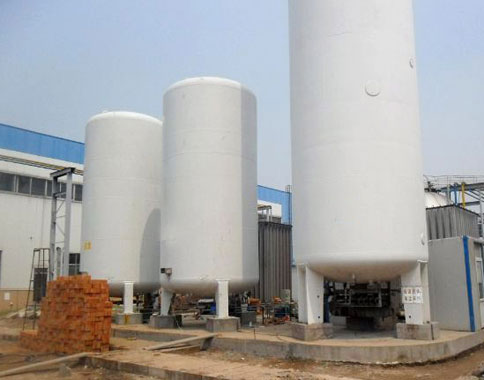

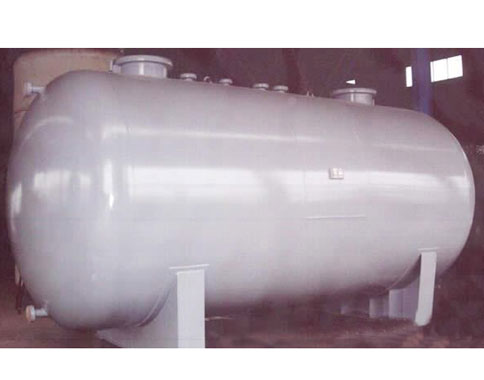

Description for the LO2 tank
1. We produce 5 ~ 150m3 of liquid oxygen and other full range vertical and horizontal cryogenic liquid storage tanks,
2.Vacuum powder insulation or high vacuum multi-layer winding insulation methods, with thermal insulation good, compact structure, easy operation and maintenance, and can be widely used in industries.
3.All these liquid gas storage tanks are in accordance with GB150 and GB18442 design and manufacturing standards,
4.The high vacuum helium leak, the vacuum degree, the daily evaporation rate, the leak and outgassing rate indicators are higher than the national standard requirements.
5.Majority of the cryogenic tanks use advanced nine o'clock structural support and a strap top winding insulation as well as other measures; at the same time, the structure has a higher insulation performance and reliability than traditional design. In addition to the standard series, we also can offer customized liquid storage tanks according to your requirement.
